Allianz Arena
A cushion-panel stadium around a tiny football pitch.

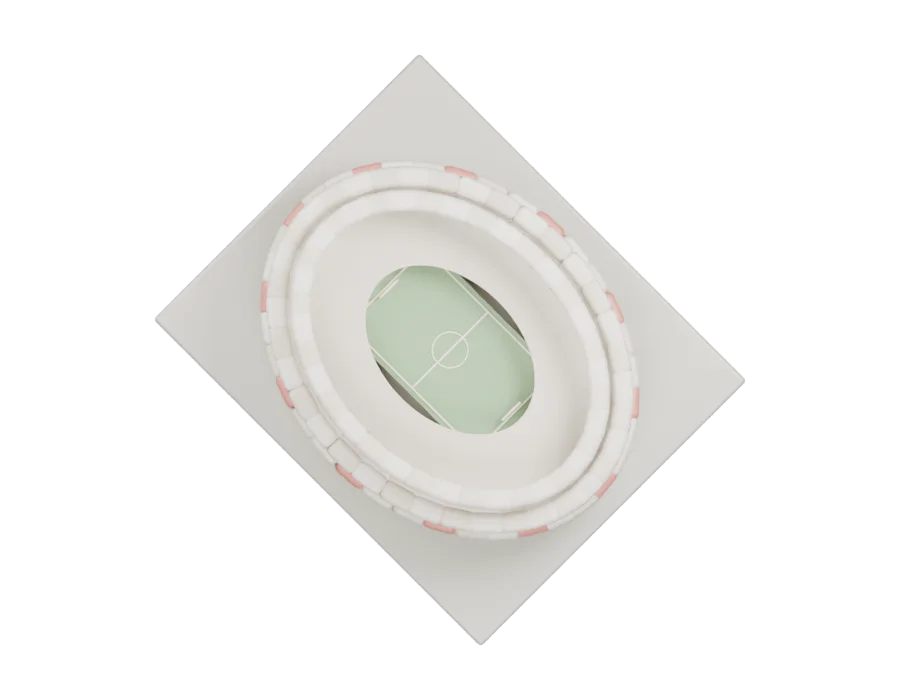

A stylized Allianz Arena study with four staggered belts of rounded facade cushions, an open roof aperture, an inner terrace ring, and a small pitch with lines and goals. Muted red accents are colored materials, not lighting effects. Simplified geometry, with no surveyed seating layout or structural specification.
Free to use & adapt · CC BY 4.0159Mesh parts
46.5kTriangles
3File formats
Model details
| Dimensions (W × D × H) | 155 × 126 × 40.1 mm |
|---|---|
| Model complexity | Advanced |
| Mesh parts | 159 separate meshes |
| Triangle count | 46,548 |
| Coordinate system | Millimetres · Y up |
| Created with | AI · Shared by Joshua |
| Added to the collection | 10 September 2026 |
| License | Creative Commons BY 4.0 ↗ |
A starting point for making. These are original concept models. Check dimensions, tolerances, mesh intersections, and material suitability before fabrication. Assembly exports contain multiple parts; separate and prepare them in your CAD or slicing tool.
Download files
Choose a format for your workflow. Every file is free, with attribution to joshua.plus/cad.
STLTriangle mesh · 2.2 MB
OBJObject geometry · 5.0 MB
GLB3D model with materials · 1.5 MB
Editable sourceParametric TypeScript · All models
STL files are unitless. Import at millimetre scale. Source uses Three.js; see the source guide for editing and regenerating models.
