Munich Four-Cylinder
Four ribbed cylinders linked by a rooftop cross.

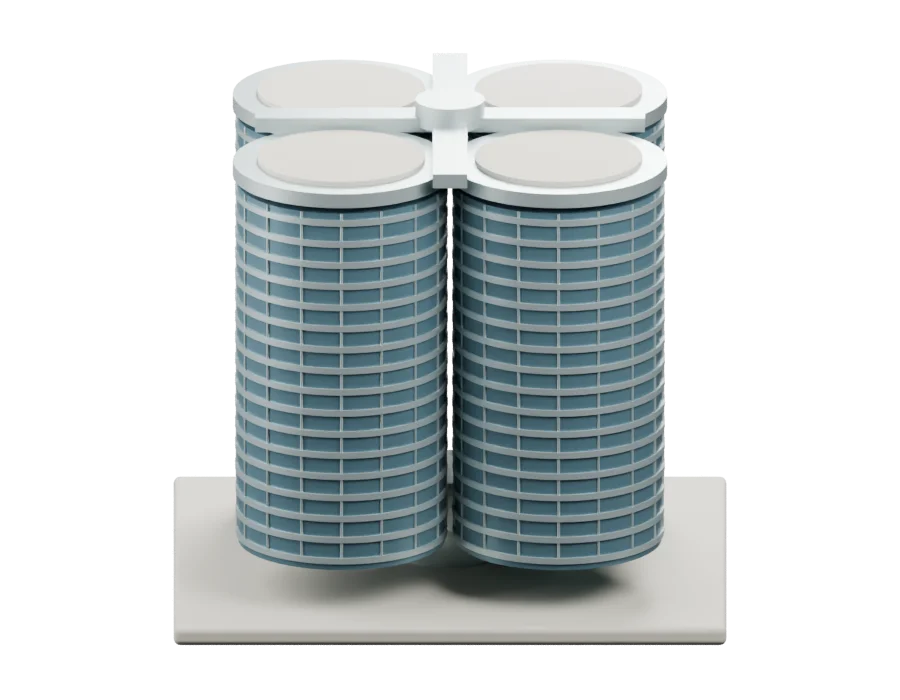

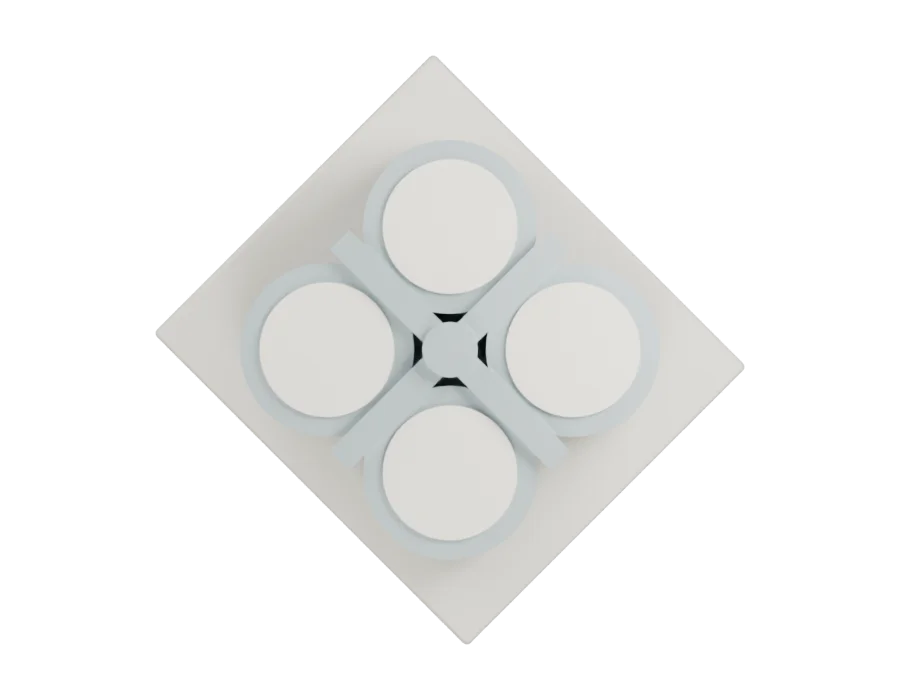

An architectural study inspired by the BMW Four-Cylinder building. Four rounded blue-gray volumes have repeated silver floor bands, vertical mullions, a central support, and a rooftop cross. The model is unbranded and uses opaque colored glazing and illustrative proportions.
Free to use & adapt · CC BY 4.0149Mesh parts
20.0kTriangles
3File formats
Model details
| Dimensions (W × D × H) | 112 × 100 × 100.5 mm |
|---|---|
| Model complexity | Advanced |
| Mesh parts | 149 separate meshes |
| Triangle count | 20,004 |
| Coordinate system | Millimetres · Y up |
| Created with | AI · Shared by Joshua |
| Added to the collection | 10 September 2026 |
| License | Creative Commons BY 4.0 ↗ |
A starting point for making. These are original concept models. Check dimensions, tolerances, mesh intersections, and material suitability before fabrication. Assembly exports contain multiple parts; separate and prepare them in your CAD or slicing tool.
Download files
Choose a format for your workflow. Every file is free, with attribution to joshua.plus/cad.
STLTriangle mesh · 977 KB
OBJObject geometry · 2.1 MB
GLB3D model with materials · 892 KB
Editable sourceParametric TypeScript · All models
STL files are unitless. Import at millimetre scale. Source uses Three.js; see the source guide for editing and regenerating models.
