Siegestor
Three archways beneath a tiny lion quadriga.

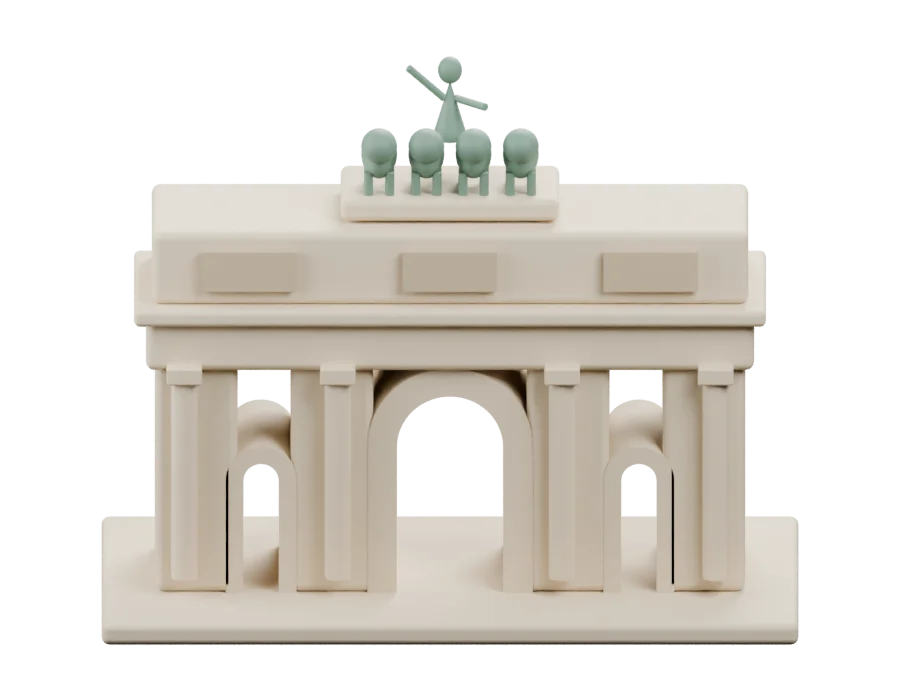

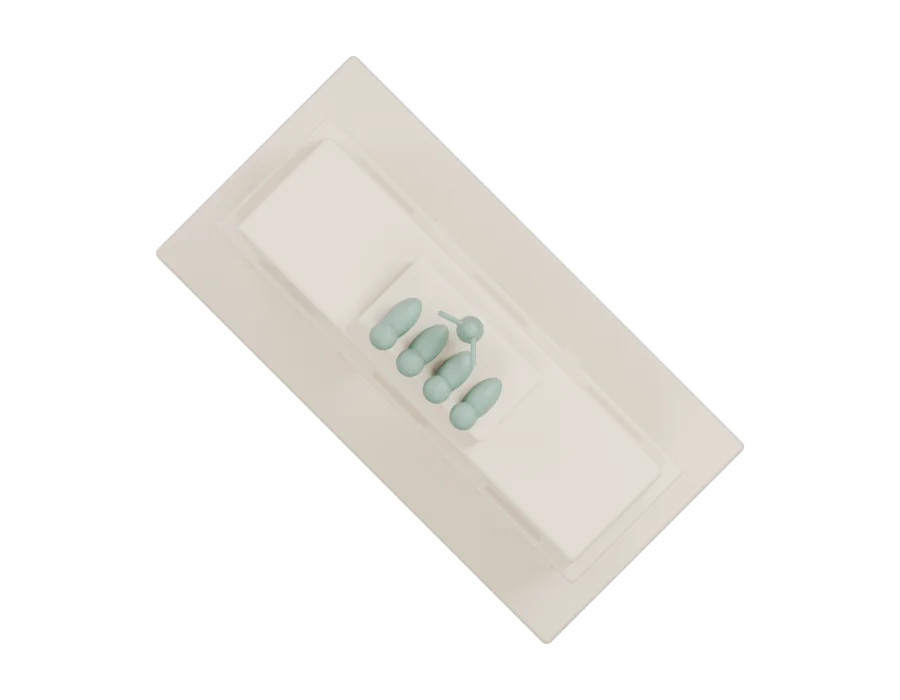

A Munich Siegestor miniature with one broad central arch, two smaller side passages, paired facade columns, an upper relief band, and a rooftop group of four stylized lions and a figure. A static sandstone-and-bronze architectural study with illustrative proportions.
Free to use & adapt · CC BY 4.062Mesh parts
17.5kTriangles
3File formats
Model details
| Dimensions (W × D × H) | 118 × 60 × 93.3 mm |
|---|---|
| Model complexity | Advanced |
| Mesh parts | 62 separate meshes |
| Triangle count | 17,464 |
| Coordinate system | Millimetres · Y up |
| Created with | AI · Shared by Joshua |
| Added to the collection | 10 September 2026 |
| License | Creative Commons BY 4.0 ↗ |
A starting point for making. These are original concept models. Check dimensions, tolerances, mesh intersections, and material suitability before fabrication. Assembly exports contain multiple parts; separate and prepare them in your CAD or slicing tool.
Download files
Choose a format for your workflow. Every file is free, with attribution to joshua.plus/cad.
STLTriangle mesh · 853 KB
OBJObject geometry · 1.6 MB
GLB3D model with materials · 551 KB
Editable sourceParametric TypeScript · All models
STL files are unitless. Import at millimetre scale. Source uses Three.js; see the source guide for editing and regenerating models.
