Corner bracket
An L-bracket with mounting holes.

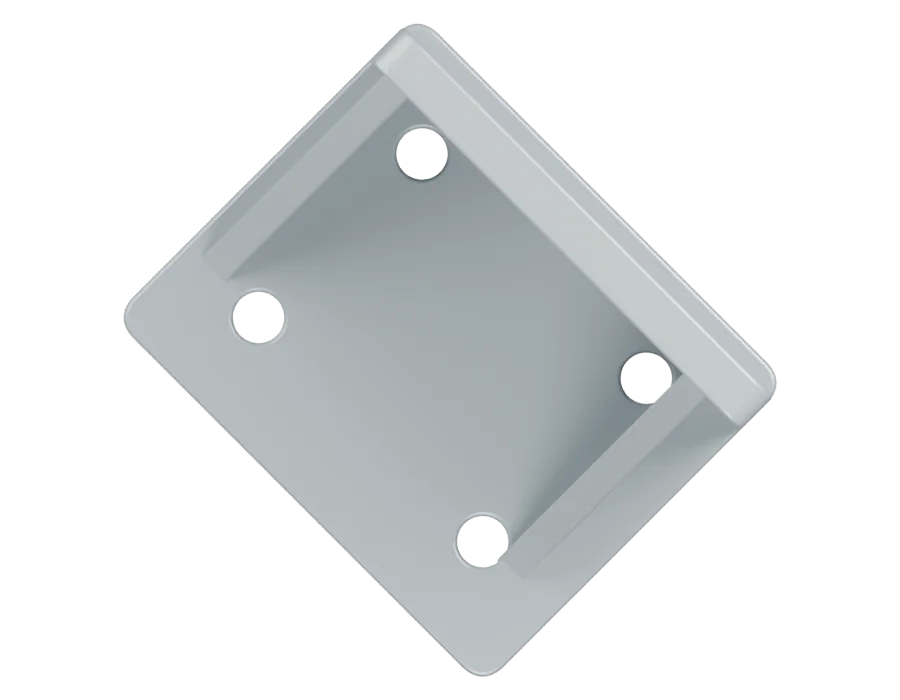

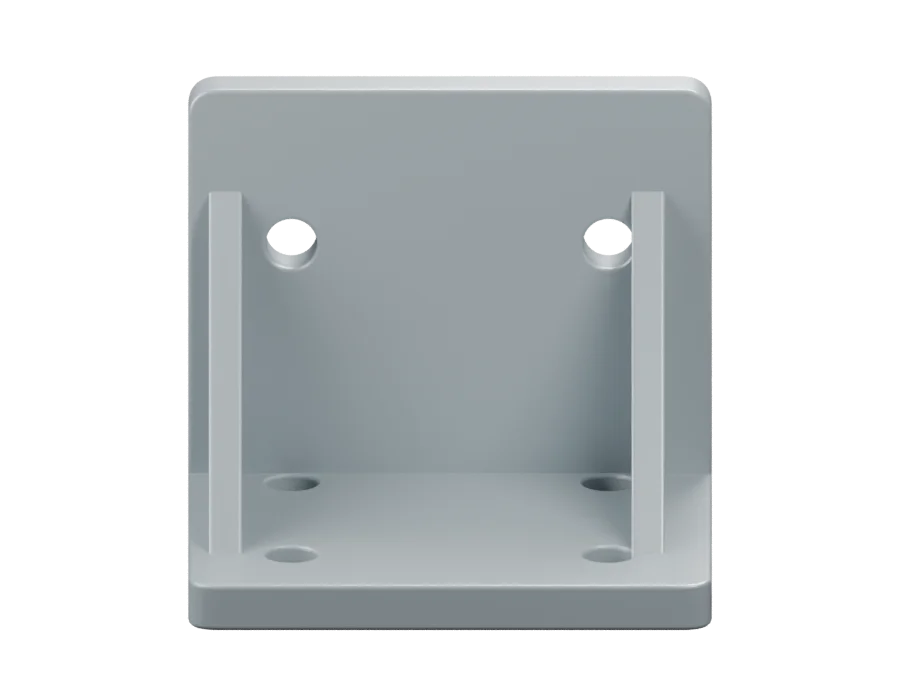

An L-shaped mounting bracket with six through-holes and two supporting webs. A reference part for exploring fastener spacing, support geometry, and mounting clearances.
Free to use & adapt · CC BY 4.04Mesh parts
10.5kTriangles
3File formats
Model details
| Dimensions (W × D × H) | 79.2 × 65.2 × 68.2 mm |
|---|---|
| Model complexity | Intermediate |
| Mesh parts | 4 separate meshes |
| Triangle count | 10,472 |
| Coordinate system | Millimetres · Y up |
| Created with | AI · Shared by Joshua |
| Added to the collection | 31 August 2026 |
| License | Creative Commons BY 4.0 ↗ |
A starting point for making. These are original concept models. Check dimensions, tolerances, mesh intersections, and material suitability before fabrication. Assembly exports contain multiple parts; separate and prepare them in your CAD or slicing tool.
Download files
Choose a format for your workflow. Every file is free, with attribution to joshua.plus/cad.
STLTriangle mesh · 511 KB
OBJObject geometry · 2.1 MB
GLB3D model with materials · 761 KB
Editable sourceParametric TypeScript · All models
STL files are unitless. Import at millimetre scale. Source uses Three.js; see the source guide for editing and regenerating models.
