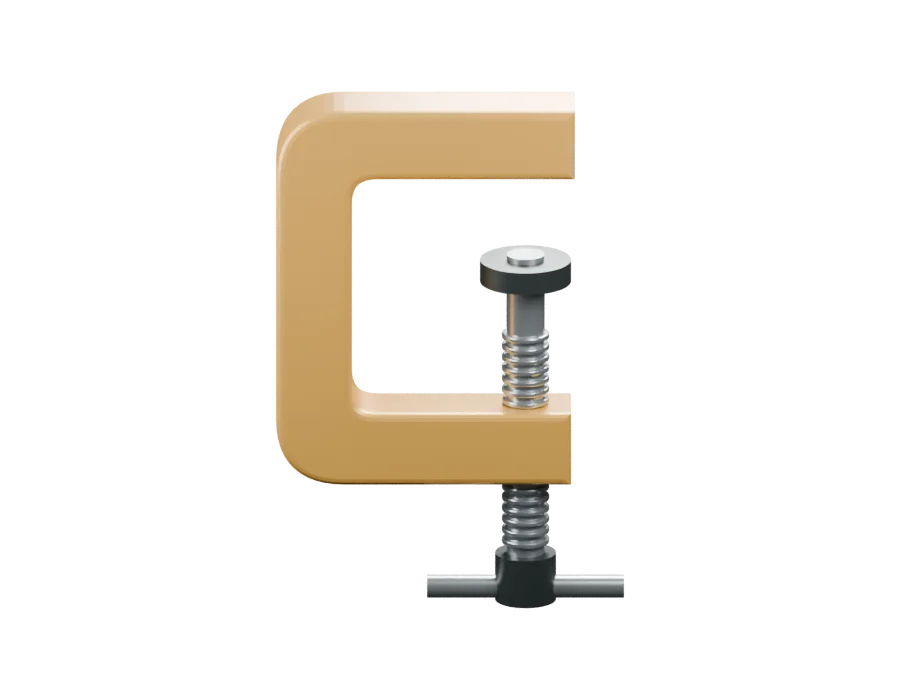

Workbench clamp
A C-clamp with a threaded spindle study.
A classic C-shaped clamp concept with a turned handle and contrasting spindle. Explore the silhouette, clearances, and assembly before adapting the source for your own workshop project.
Free to use & adapt · CC BY 4.025Mesh parts
48.0kTriangles
3File formats
Model details
| Dimensions (W × D × H) | 92 × 24 × 138.5 mm |
|---|---|
| Model complexity | Intermediate |
| Mesh parts | 25 separate meshes |
| Triangle count | 47,996 |
| Coordinate system | Millimetres · Y up |
| Created with | AI · Shared by Joshua |
| Added to the collection | 5 September 2026 |
| License | Creative Commons BY 4.0 ↗ |
A starting point for making. These are original concept models. Check dimensions, tolerances, mesh intersections, and material suitability before fabrication. Assembly exports contain multiple parts; separate and prepare them in your CAD or slicing tool.
Download files
Choose a format for your workflow. Every file is free, with attribution to joshua.plus/cad.
STLTriangle mesh · 2.3 MB
OBJObject geometry · 8.8 MB
GLB3D model with materials · 3.0 MB
Editable sourceParametric TypeScript · All models
STL files are unitless. Import at millimetre scale. Source uses Three.js; see the source guide for editing and regenerating models.
