Cardan joint

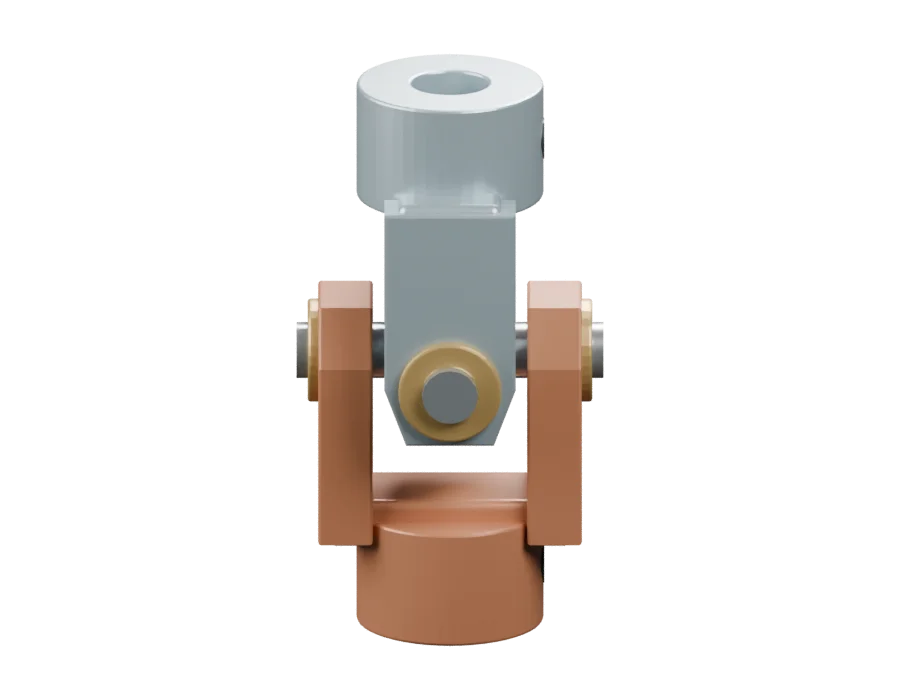

An exposed universal joint with crossed yokes.

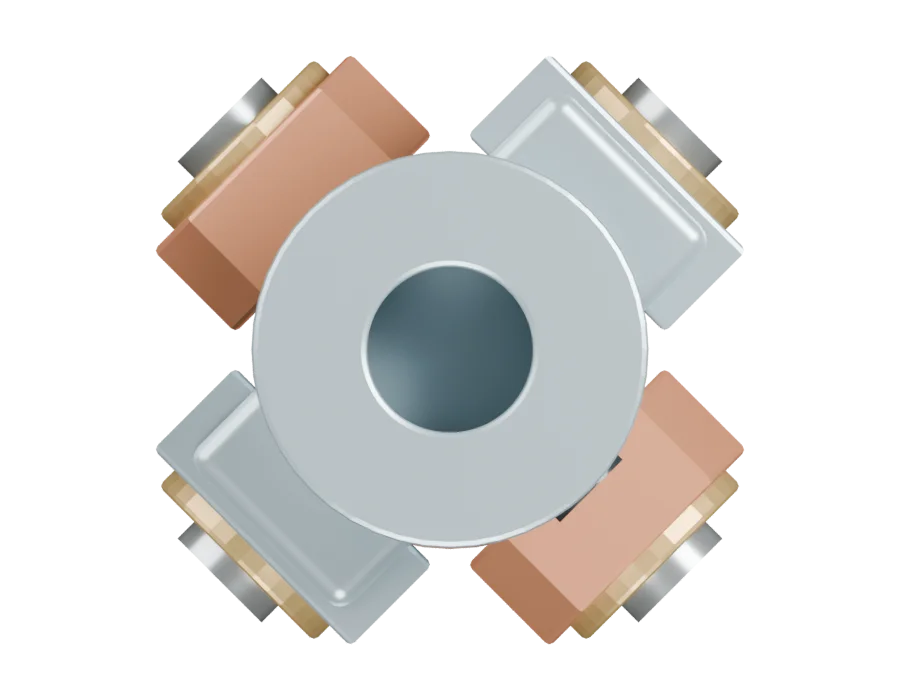

A static universal-joint study with perpendicular yokes, a crossed center pin, bored shaft collars, and contrasting bearing caps. The open assembly makes the relationship between the two yokes easy to inspect. Dimensions and clearances are illustrative; the model has no kinematic constraints or validated torque rating.
Free to use & adapt · CC BY 4.017Mesh parts
13.3kTriangles
3File formats
Model details
| Dimensions (W × D × H) | 44 × 44 × 80.8 mm |
|---|---|
| Model complexity | Advanced |
| Mesh parts | 17 separate meshes |
| Triangle count | 13,268 |
| Coordinate system | Millimetres · Y up |
| Created with | AI · Shared by Joshua |
| Added to the collection | 9 September 2026 |
| License | Creative Commons BY 4.0 ↗ |
A starting point for making. These are original concept models. Check dimensions, tolerances, mesh intersections, and material suitability before fabrication. Assembly exports contain multiple parts; separate and prepare them in your CAD or slicing tool.
Download files
Choose a format for your workflow. Every file is free, with attribution to joshua.plus/cad.
STLTriangle mesh · 648 KB
OBJObject geometry · 2.3 MB
GLB3D model with materials · 843 KB
Editable sourceParametric TypeScript · All models
STL files are unitless. Import at millimetre scale. Source uses Three.js; see the source guide for editing and regenerating models.
