Crank slider
An open flywheel, connecting rod, and guided slider.

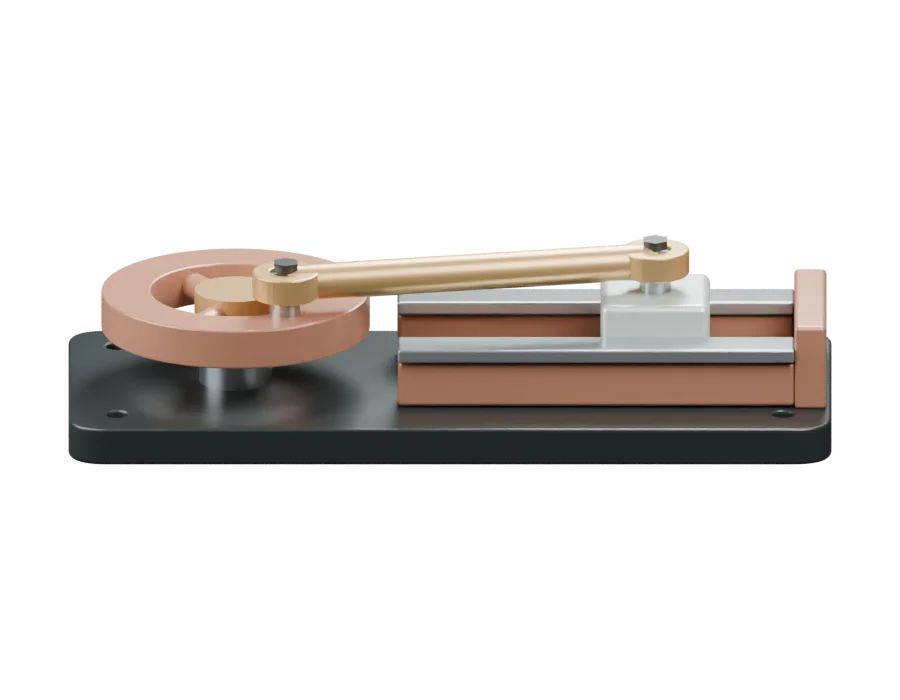

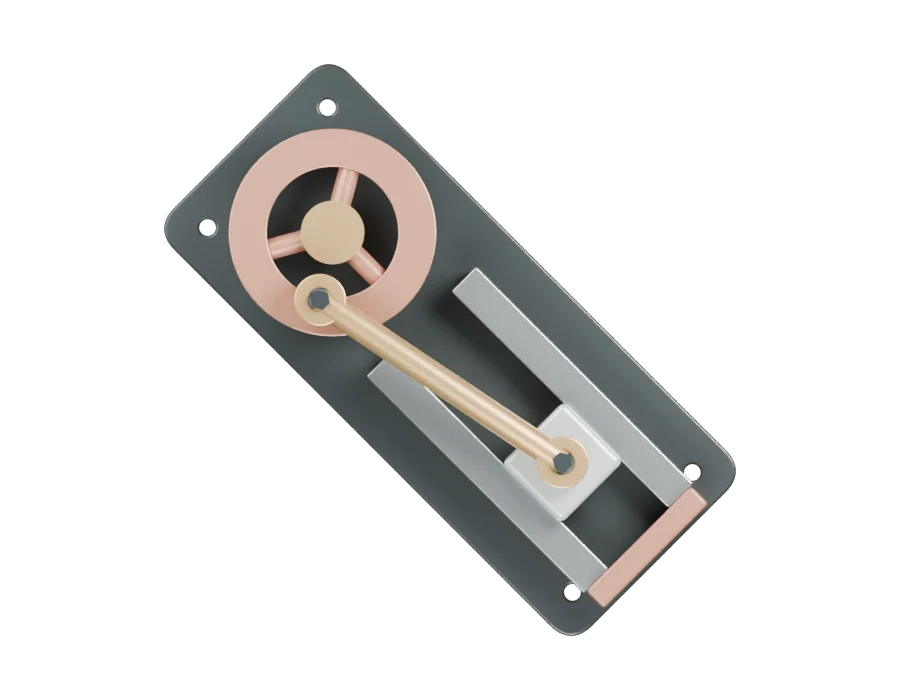

A horizontal crank-slider concept mounted on a rounded base. A three-spoke flywheel connects to a rectangular carriage through an exposed connecting rod, with two rails and a visible end stop. The model shows one fixed pose; stroke, pivot clearances, and motion are not validated or simulated.
Free to use & adapt · CC BY 4.020Mesh parts
13.8kTriangles
3File formats
Model details
| Dimensions (W × D × H) | 167.2 × 70.2 × 40.6 mm |
|---|---|
| Model complexity | Advanced |
| Mesh parts | 20 separate meshes |
| Triangle count | 13,764 |
| Coordinate system | Millimetres · Y up |
| Created with | AI · Shared by Joshua |
| Added to the collection | 9 September 2026 |
| License | Creative Commons BY 4.0 ↗ |
A starting point for making. These are original concept models. Check dimensions, tolerances, mesh intersections, and material suitability before fabrication. Assembly exports contain multiple parts; separate and prepare them in your CAD or slicing tool.
Download files
Choose a format for your workflow. Every file is free, with attribution to joshua.plus/cad.
STLTriangle mesh · 672 KB
OBJObject geometry · 2.5 MB
GLB3D model with materials · 909 KB
Editable sourceParametric TypeScript · All models
STL files are unitless. Import at millimetre scale. Source uses Three.js; see the source guide for editing and regenerating models.
