Twin pulley block
Two grooved sheaves inside an open side frame.

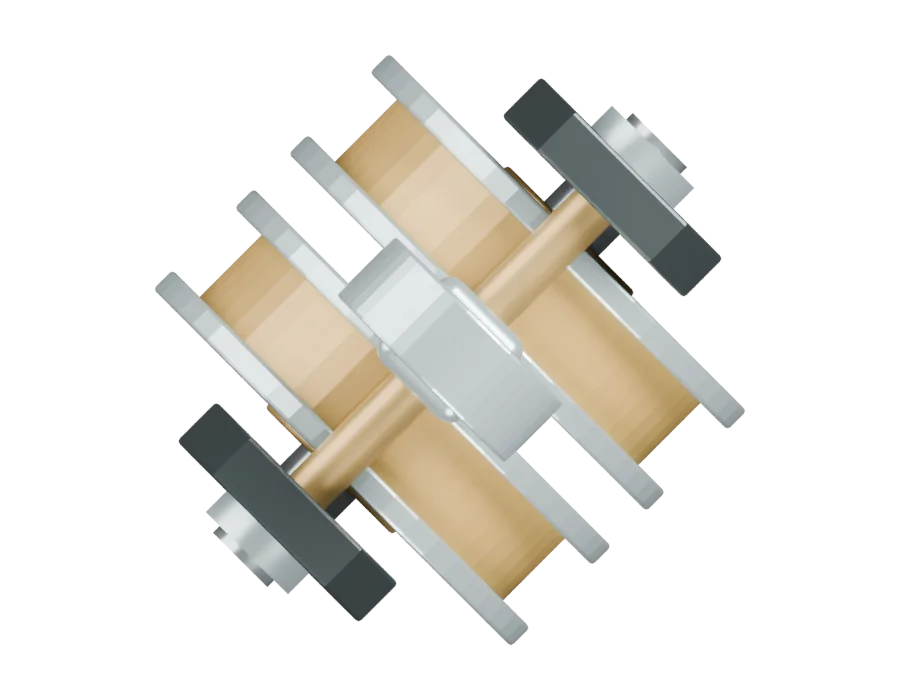

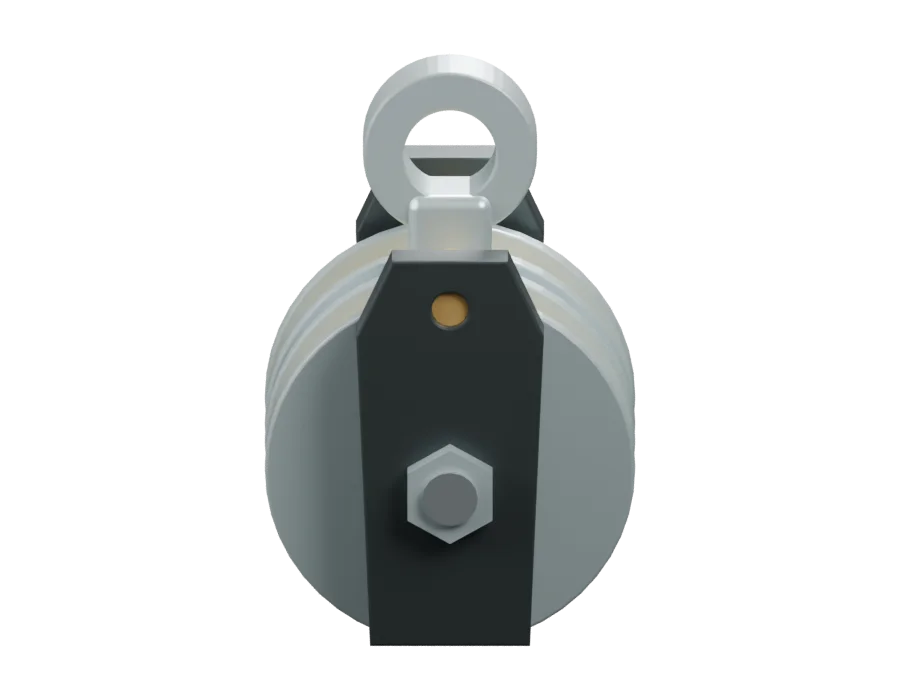

A twin-sheave pulley block with raised wheel flanges, a shared axle, open side cheeks, contrasting hubs, and an upper attachment eye. The grooves and bores are actual mesh geometry. This is a static assembly study without rope, motion constraints, bearing specifications, or a working-load rating.
Free to use & adapt · CC BY 4.017Mesh parts
18.2kTriangles
3File formats
Model details
| Dimensions (W × D × H) | 52.8 × 62 × 81.8 mm |
|---|---|
| Model complexity | Intermediate |
| Mesh parts | 17 separate meshes |
| Triangle count | 18,164 |
| Coordinate system | Millimetres · Y up |
| Created with | AI · Shared by Joshua |
| Added to the collection | 9 September 2026 |
| License | Creative Commons BY 4.0 ↗ |
A starting point for making. These are original concept models. Check dimensions, tolerances, mesh intersections, and material suitability before fabrication. Assembly exports contain multiple parts; separate and prepare them in your CAD or slicing tool.
Download files
Choose a format for your workflow. Every file is free, with attribution to joshua.plus/cad.
STLTriangle mesh · 887 KB
OBJObject geometry · 3.3 MB
GLB3D model with materials · 1.2 MB
Editable sourceParametric TypeScript · All models
STL files are unitless. Import at millimetre scale. Source uses Three.js; see the source guide for editing and regenerating models.
