Linear carriage

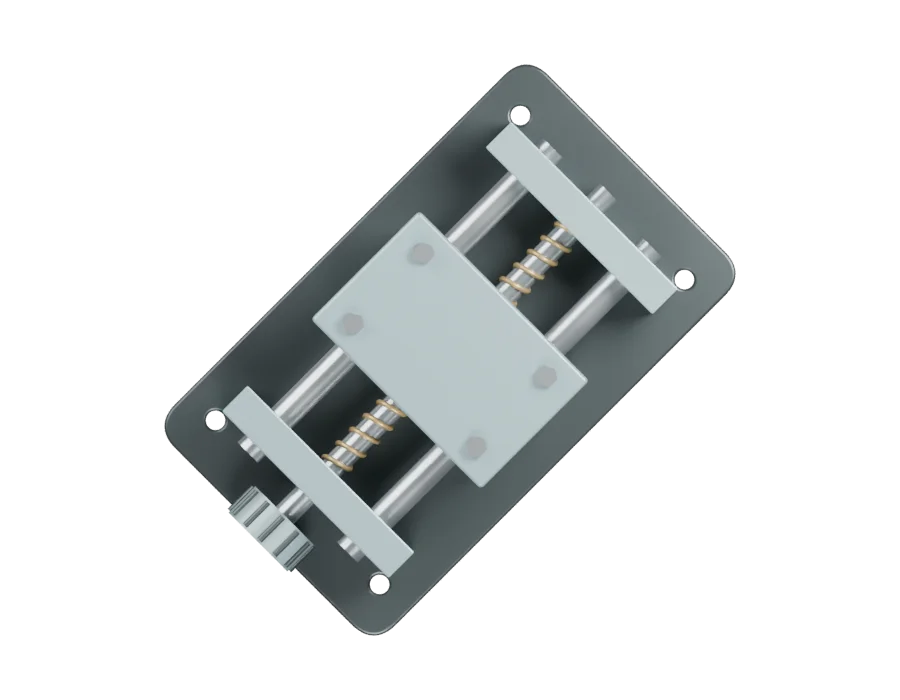

A twin-rail carriage with an exposed screw spindle.
A compact linear-stage study with two guide rods, a bored carriage block, end supports, an illustrative helical spindle, and a handwheel. Four mounting holes pass through the base. The pose is fixed; the screw profile, fits, travel, and load capacity have not been engineered or tested.
Free to use & adapt · CC BY 4.030Mesh parts
23.5kTriangles
3File formats
Model details
| Dimensions (W × D × H) | 75.2 × 129.1 × 40.1 mm |
|---|---|
| Model complexity | Advanced |
| Mesh parts | 30 separate meshes |
| Triangle count | 23,520 |
| Coordinate system | Millimetres · Y up |
| Created with | AI · Shared by Joshua |
| Added to the collection | 9 September 2026 |
| License | Creative Commons BY 4.0 ↗ |
A starting point for making. These are original concept models. Check dimensions, tolerances, mesh intersections, and material suitability before fabrication. Assembly exports contain multiple parts; separate and prepare them in your CAD or slicing tool.
Download files
Choose a format for your workflow. Every file is free, with attribution to joshua.plus/cad.
STLTriangle mesh · 1.1 MB
OBJObject geometry · 4.0 MB
GLB3D model with materials · 1.4 MB
Editable sourceParametric TypeScript · All models
STL files are unitless. Import at millimetre scale. Source uses Three.js; see the source guide for editing and regenerating models.
