Flange bearing

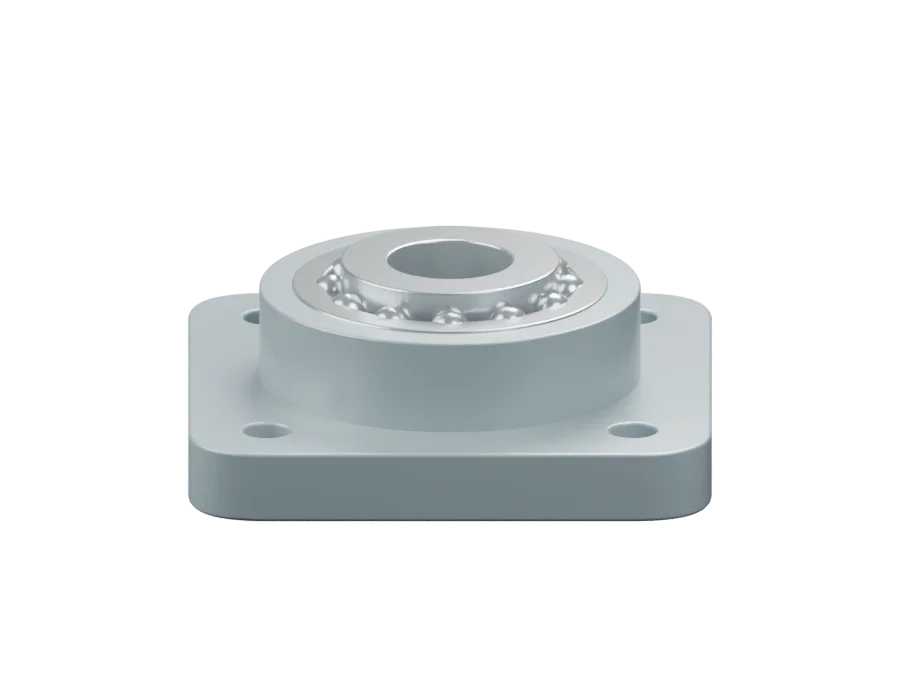

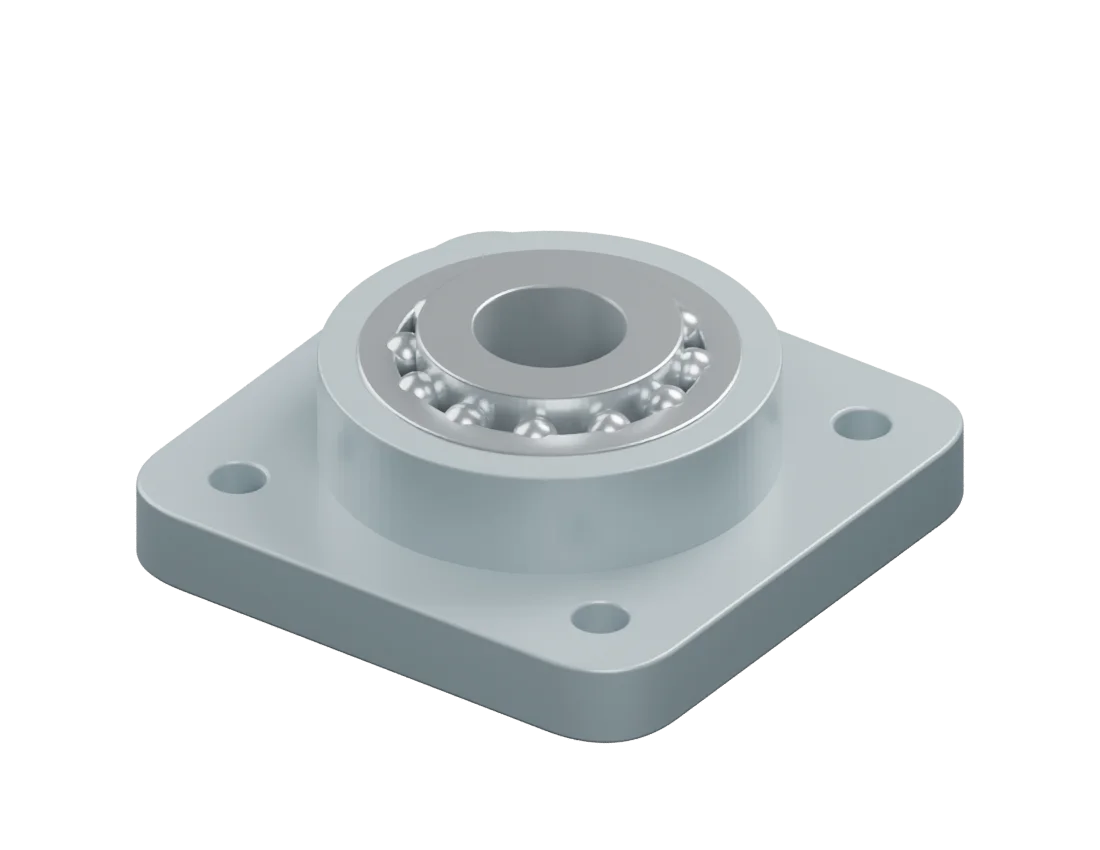

A mounting flange and bearing assembly.

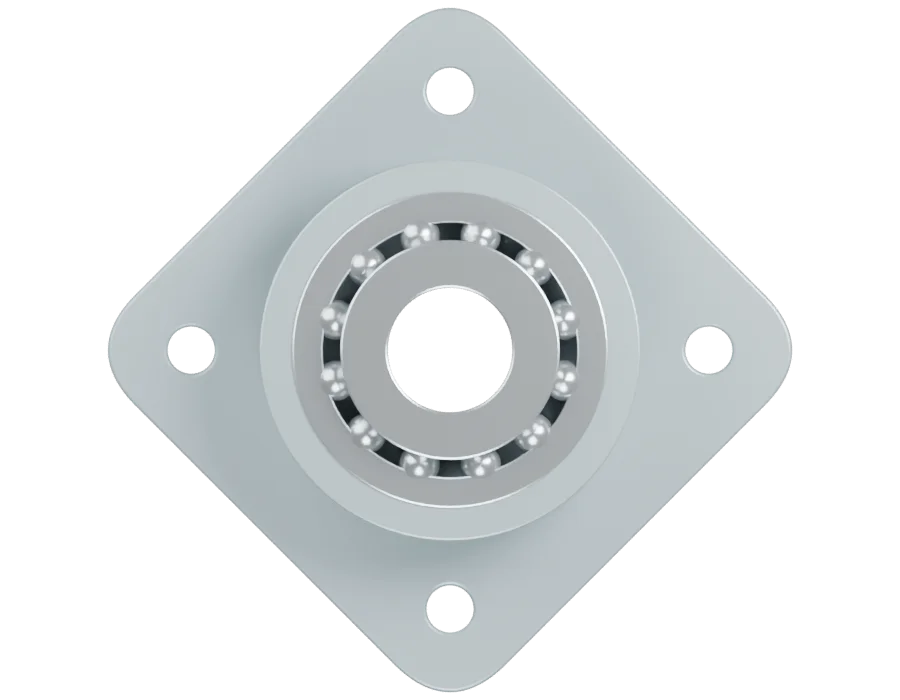

A four-hole mounting flange surrounding an exposed bearing study. Contrasting races and steel balls show the construction clearly, making this a useful reference assembly for exploring mechanical CAD.
Free to use & adapt · CC BY 4.016Mesh parts
19.4kTriangles
3File formats
Model details
| Dimensions (W × D × H) | 97.2 × 97.2 × 35.5 mm |
|---|---|
| Model complexity | Advanced |
| Mesh parts | 16 separate meshes |
| Triangle count | 19,440 |
| Coordinate system | Millimetres · Y up |
| Created with | AI · Shared by Joshua |
| Added to the collection | 6 September 2026 |
| License | Creative Commons BY 4.0 ↗ |
A starting point for making. These are original concept models. Check dimensions, tolerances, mesh intersections, and material suitability before fabrication. Assembly exports contain multiple parts; separate and prepare them in your CAD or slicing tool.
Download files
Choose a format for your workflow. Every file is free, with attribution to joshua.plus/cad.
STLTriangle mesh · 949 KB
OBJObject geometry · 3.3 MB
GLB3D model with materials · 1.1 MB
Editable sourceParametric TypeScript · All models
STL files are unitless. Import at millimetre scale. Source uses Three.js; see the source guide for editing and regenerating models.
