Planetary gearbox

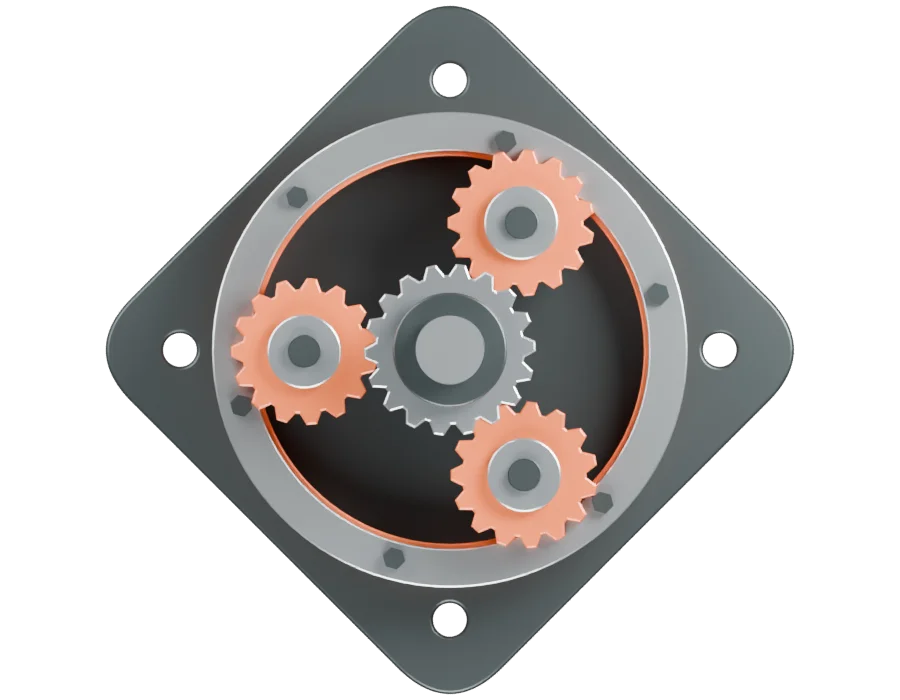

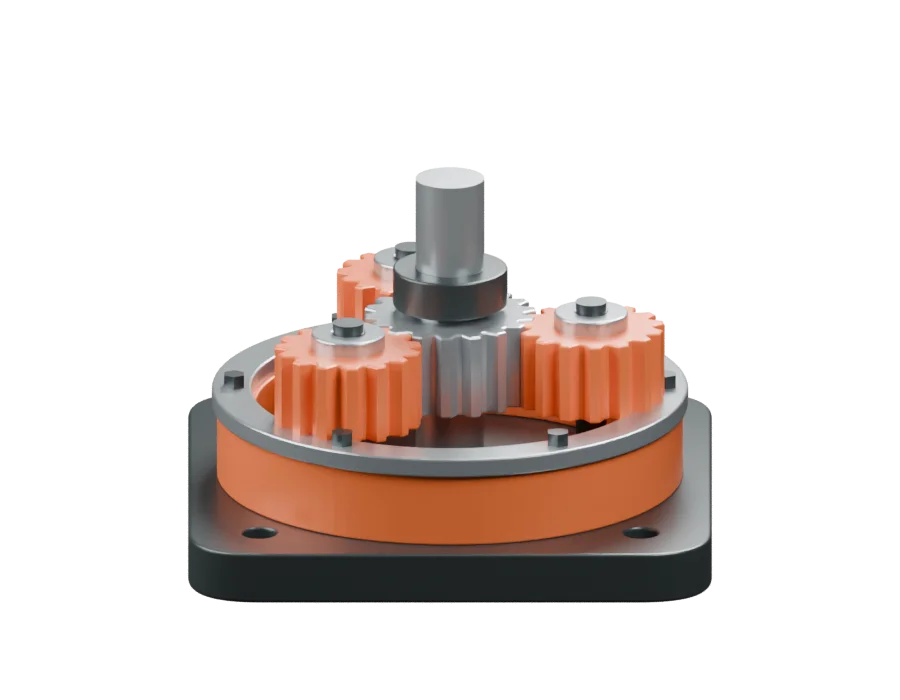

An exposed three-planet gear assembly.
An open, three-planet gear assembly designed to make a complex mechanism easy to explore. The exposed carrier, contrasting gears, and central shaft reveal how the parts fit together. A study model for your desk, your next mechanism, or your curiosity.
Free to use & adapt · CC BY 4.021Mesh parts
27.3kTriangles
3File formats
Model details
| Dimensions (W × D × H) | 104.2 × 104.2 × 72.1 mm |
|---|---|
| Model complexity | Advanced |
| Mesh parts | 21 separate meshes |
| Triangle count | 27,308 |
| Coordinate system | Millimetres · Y up |
| Created with | AI · Shared by Joshua |
| Added to the collection | 9 September 2026 |
| License | Creative Commons BY 4.0 ↗ |
A starting point for making. These are original concept models. Check dimensions, tolerances, mesh intersections, and material suitability before fabrication. Assembly exports contain multiple parts; separate and prepare them in your CAD or slicing tool. Gear teeth are illustrative; this is a static assembly study, not a validated working transmission.
Download files
Choose a format for your workflow. Every file is free, with attribution to joshua.plus/cad.
STLTriangle mesh · 1.3 MB
OBJObject geometry · 5.2 MB
GLB3D model with materials · 1.8 MB
Editable sourceParametric TypeScript · All models
STL files are unitless. Import at millimetre scale. Source uses Three.js; see the source guide for editing and regenerating models.
